Hague AMP3 Highshot Camera Mast 7.3m With PH100 Powerhead & Padded Bag
Hague AMP3 Highshot Camera Mast 7.3m With PH100 Powerhead & Padded Bag
Price excludes VAT

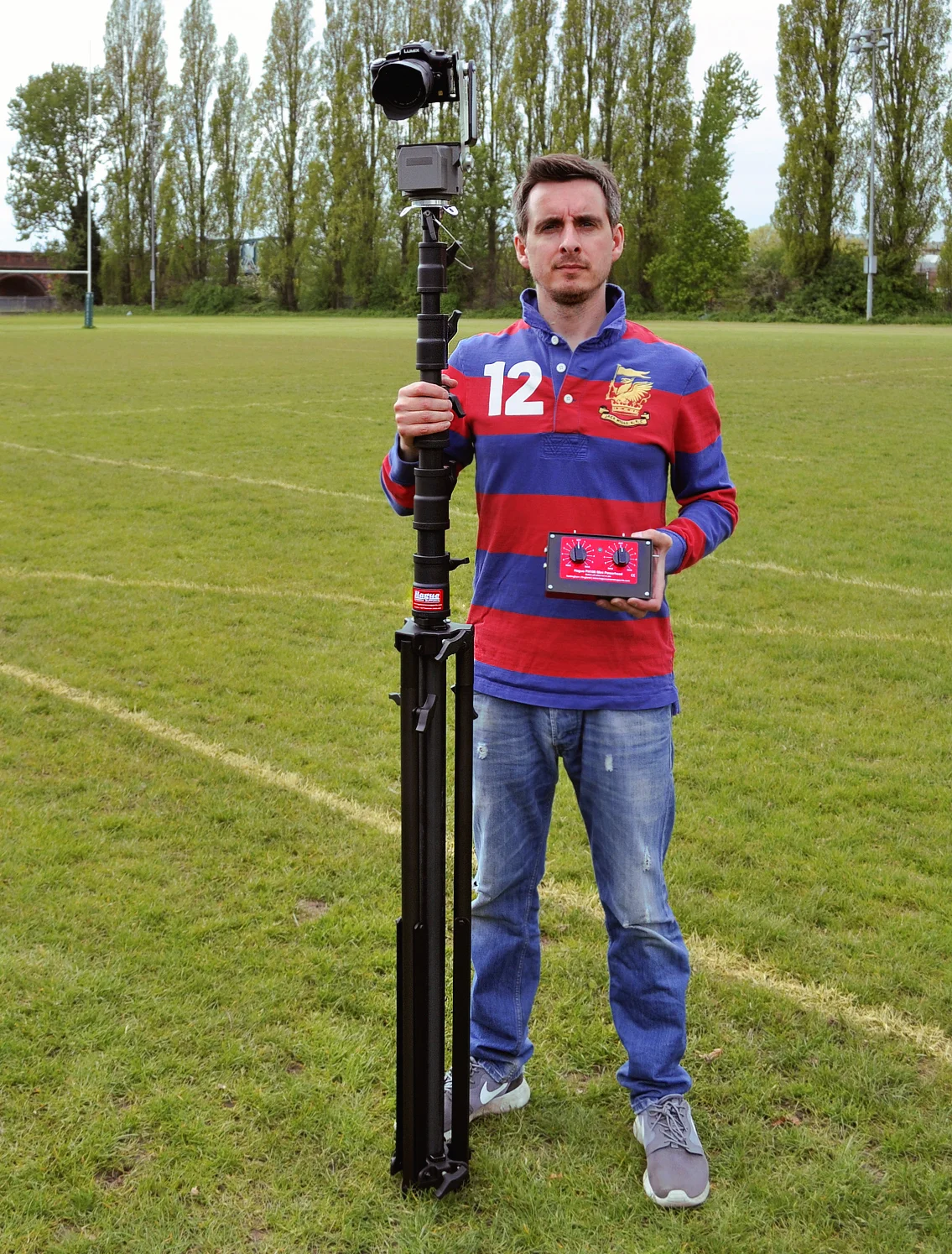

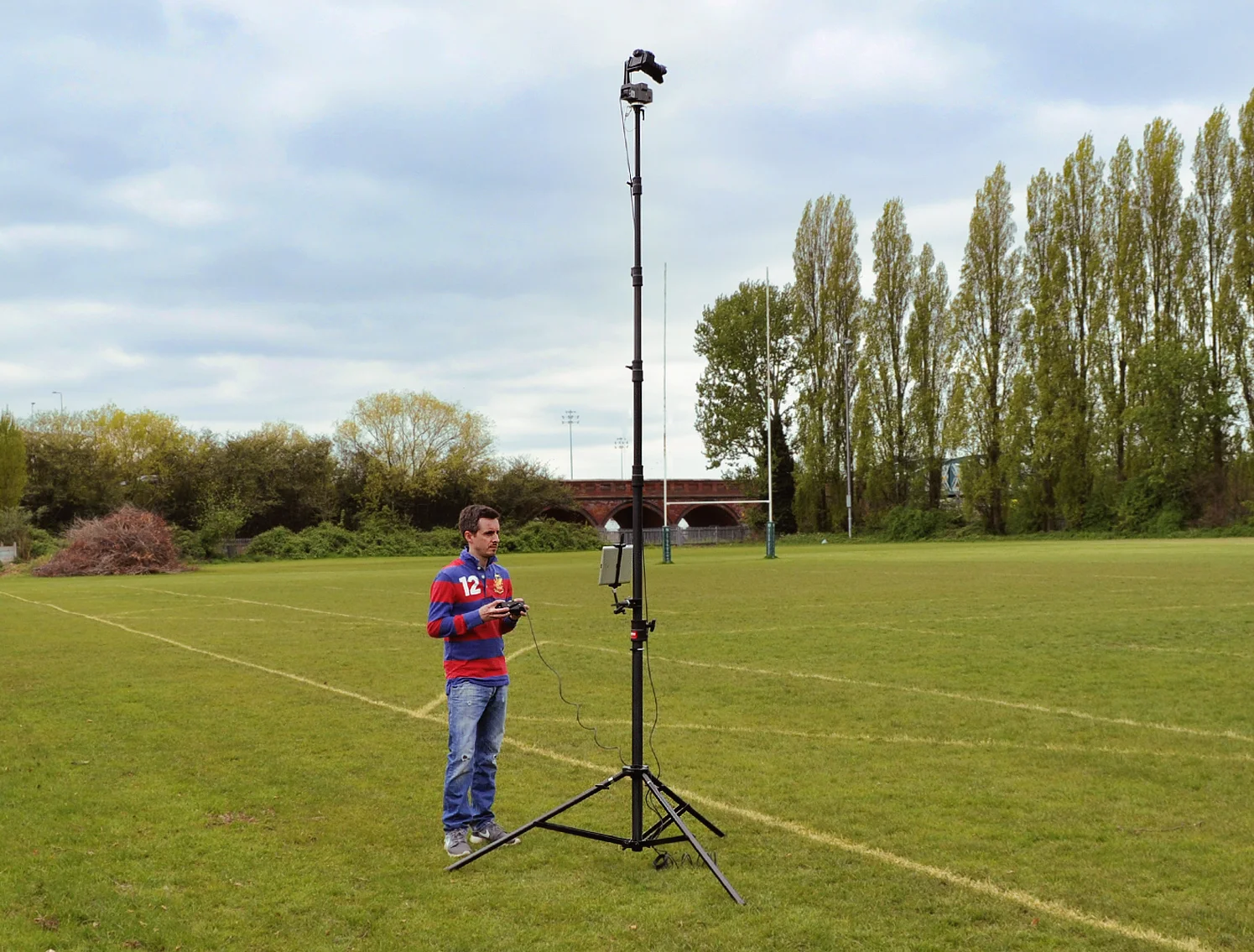

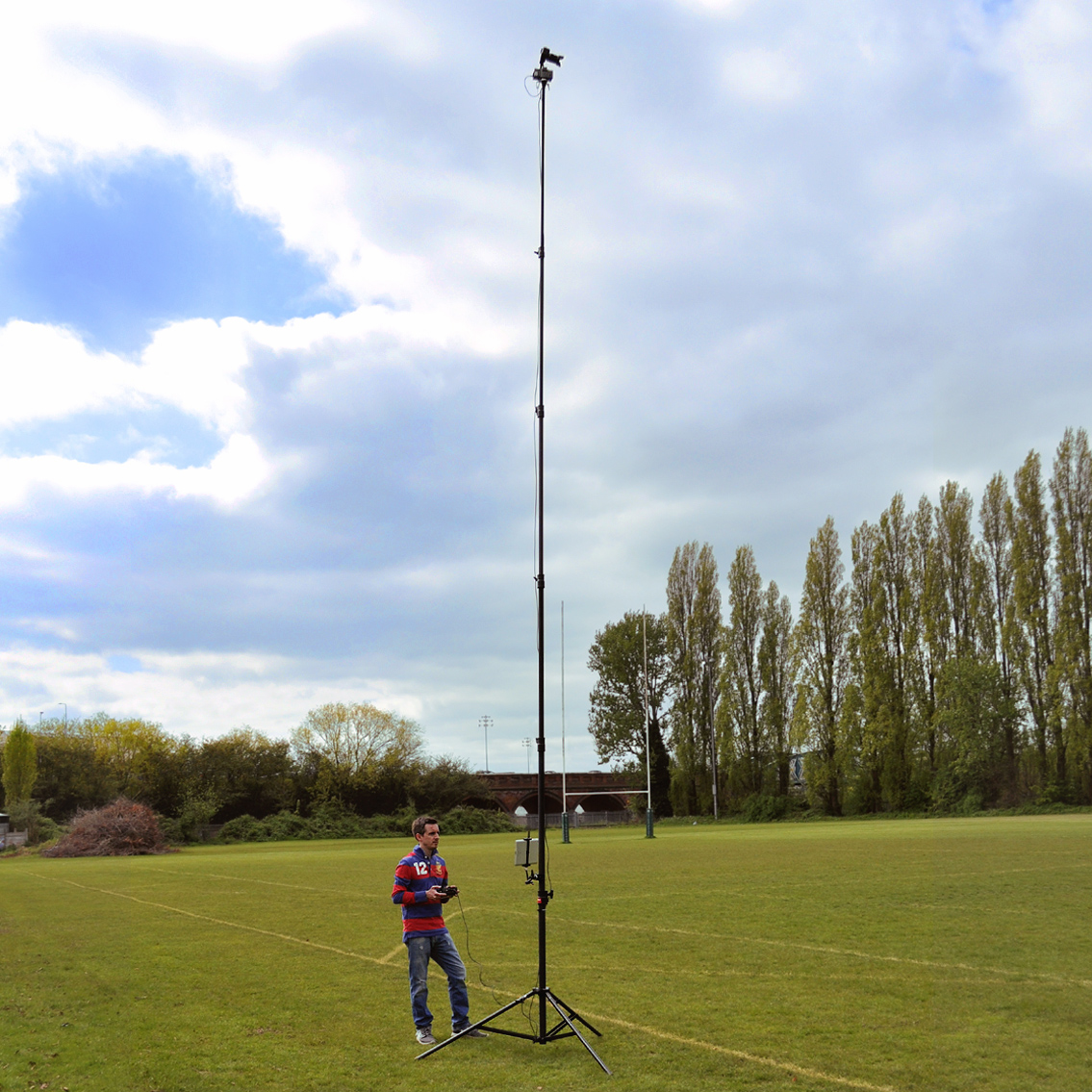

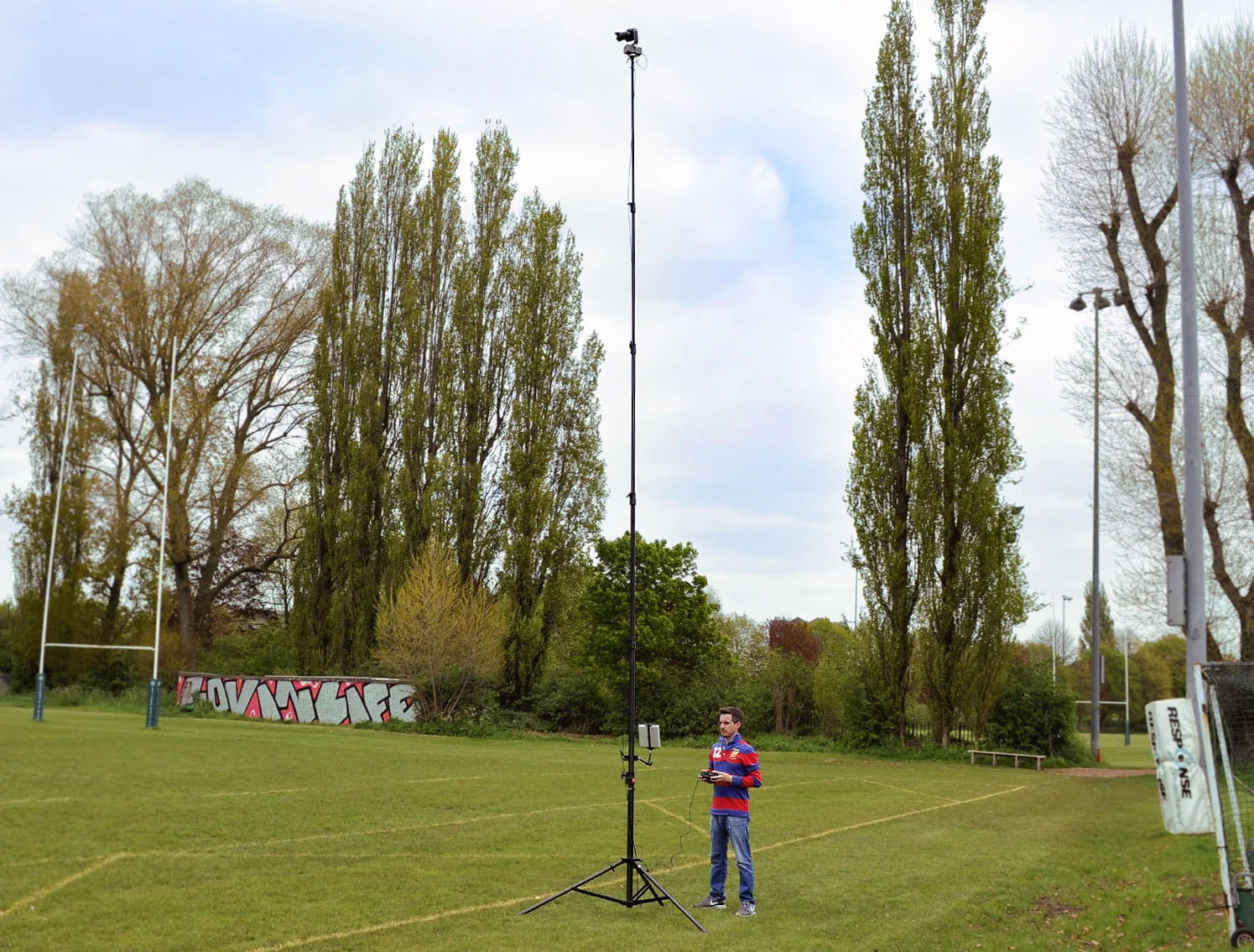

The Hague AMP3 Highshot Camera Mast kit extends to 7.3m (24ft) in height and includes the higher-speed Hague PH100 remote controlled powerhead. This aerial mast system is ideal for sports filming and sports analysis type work and is supplied in a padded transit bag.

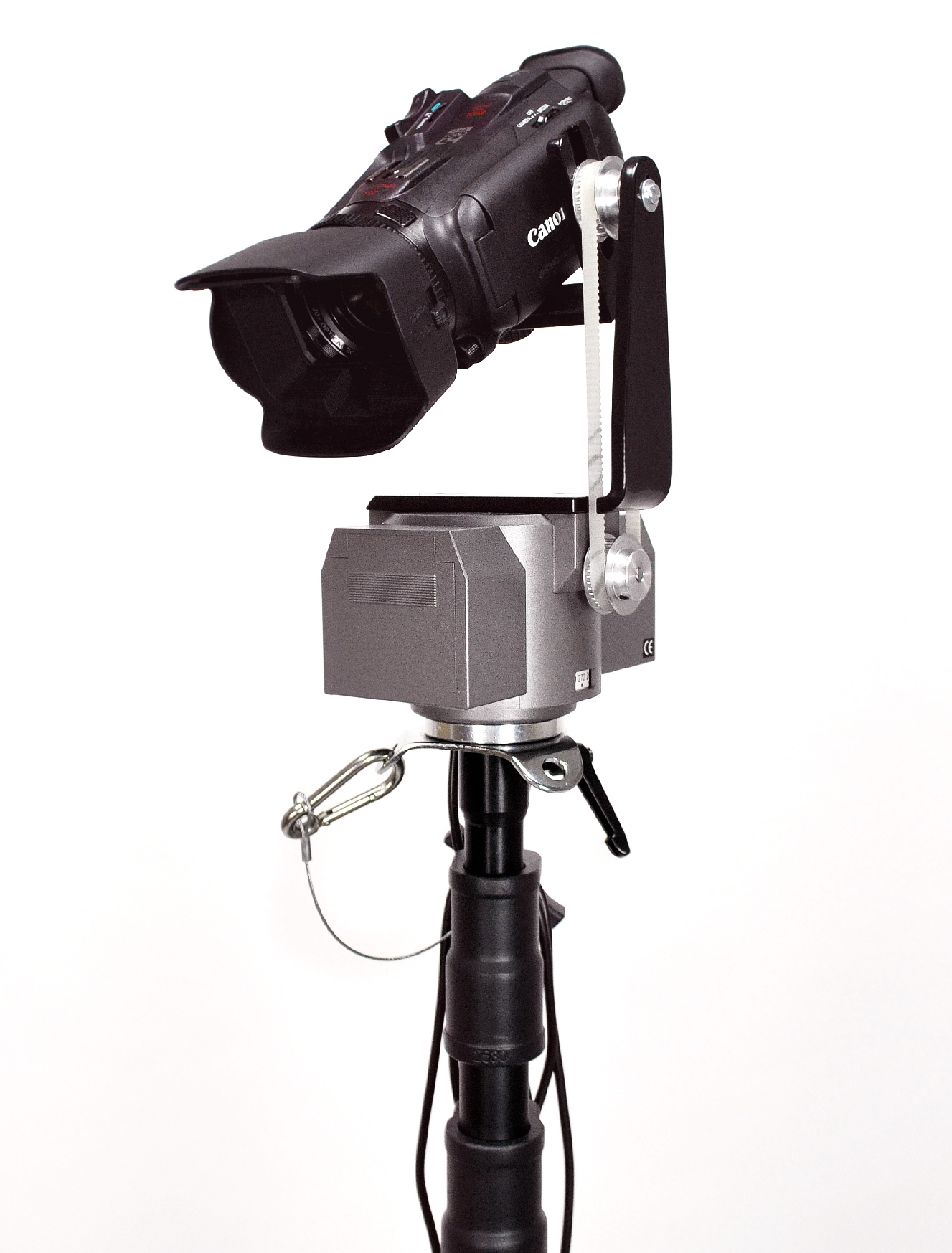

The Hague PH100 Powerhead provides users with a much quicker movement compared to the standard 340° (PH) and 360° (MPH) powerheads that are included with some of our other kits. Supplied with its own control box, which has individual dial controls for both the pan and tilt functions, the system is ideal for people looking for hands on control whilst filming sports.
Made from lightweight aluminium this mast is extremely portable, quick to set-up and easy to use. With its own tripod style base, which remains attached at all times and just folds up for transport, the mast provides a rigid base and each section of the mast can be raised easily by hand.

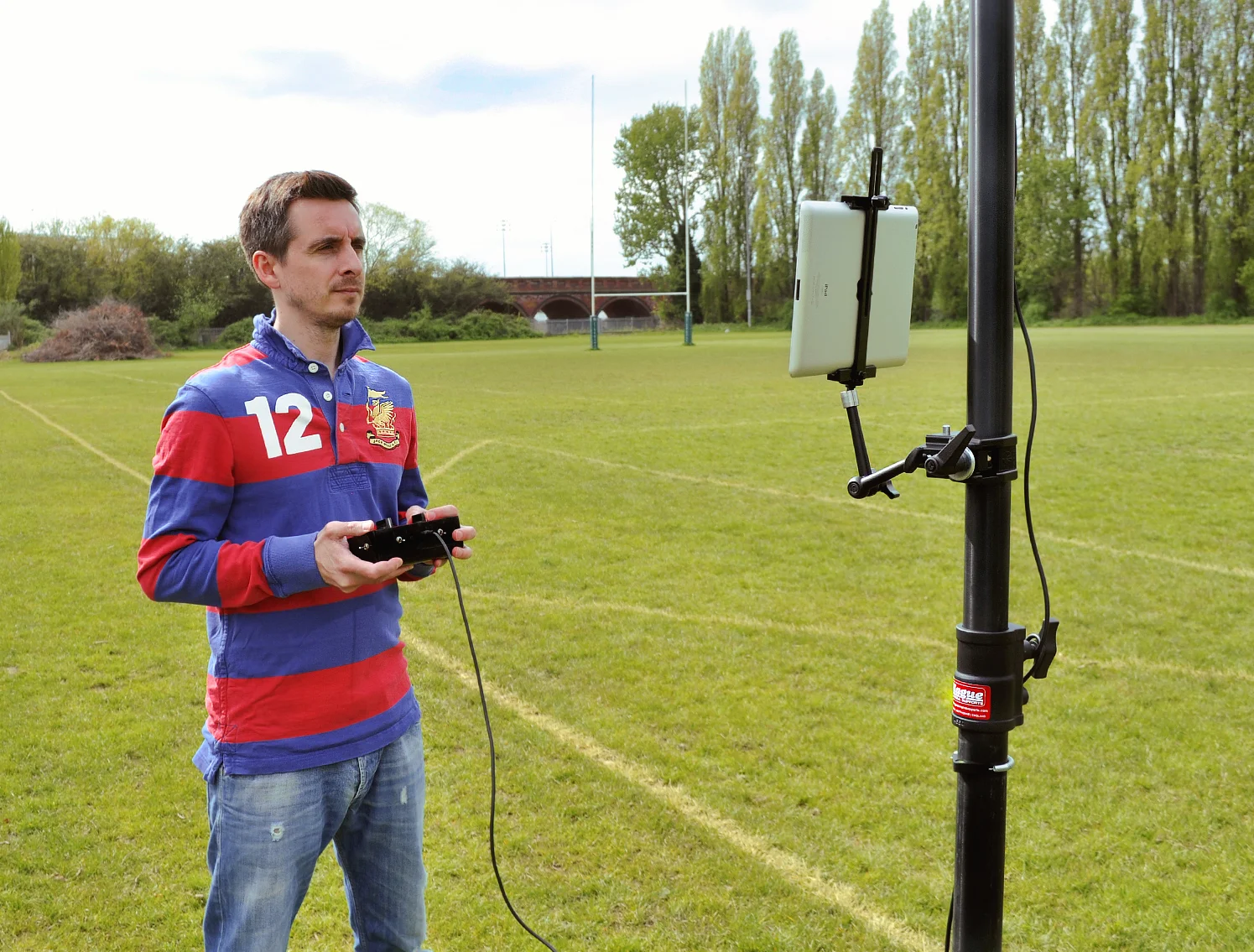

At the base, you would usually use a monitor, tablet or phone to monitor your shot and this can be clamped to the mast using one of the clamps listed as related products below.
The mast now has three adjustable legs for levelling off, a supplied spirit level and there is an attachment at the top to secure guide ropes if required.

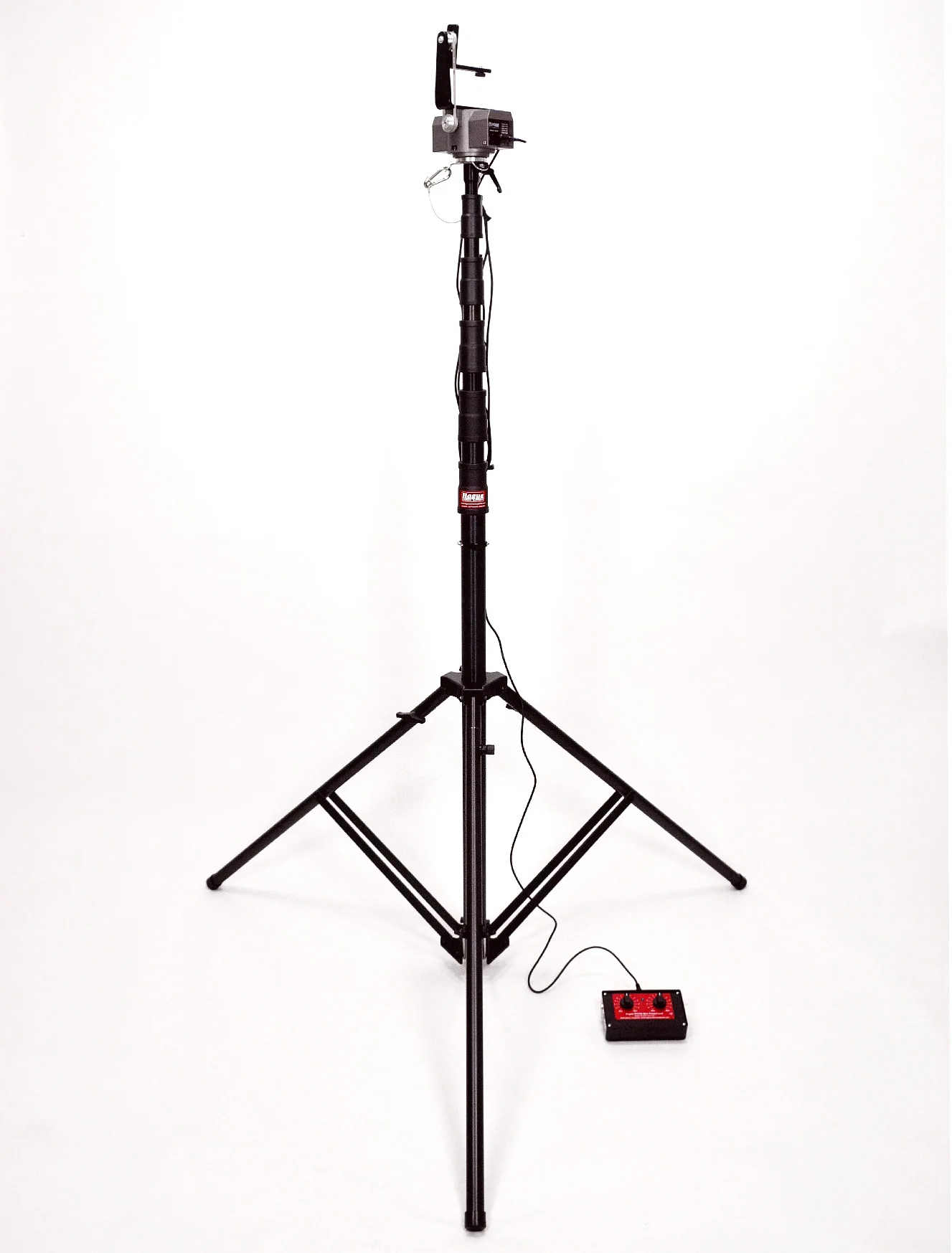

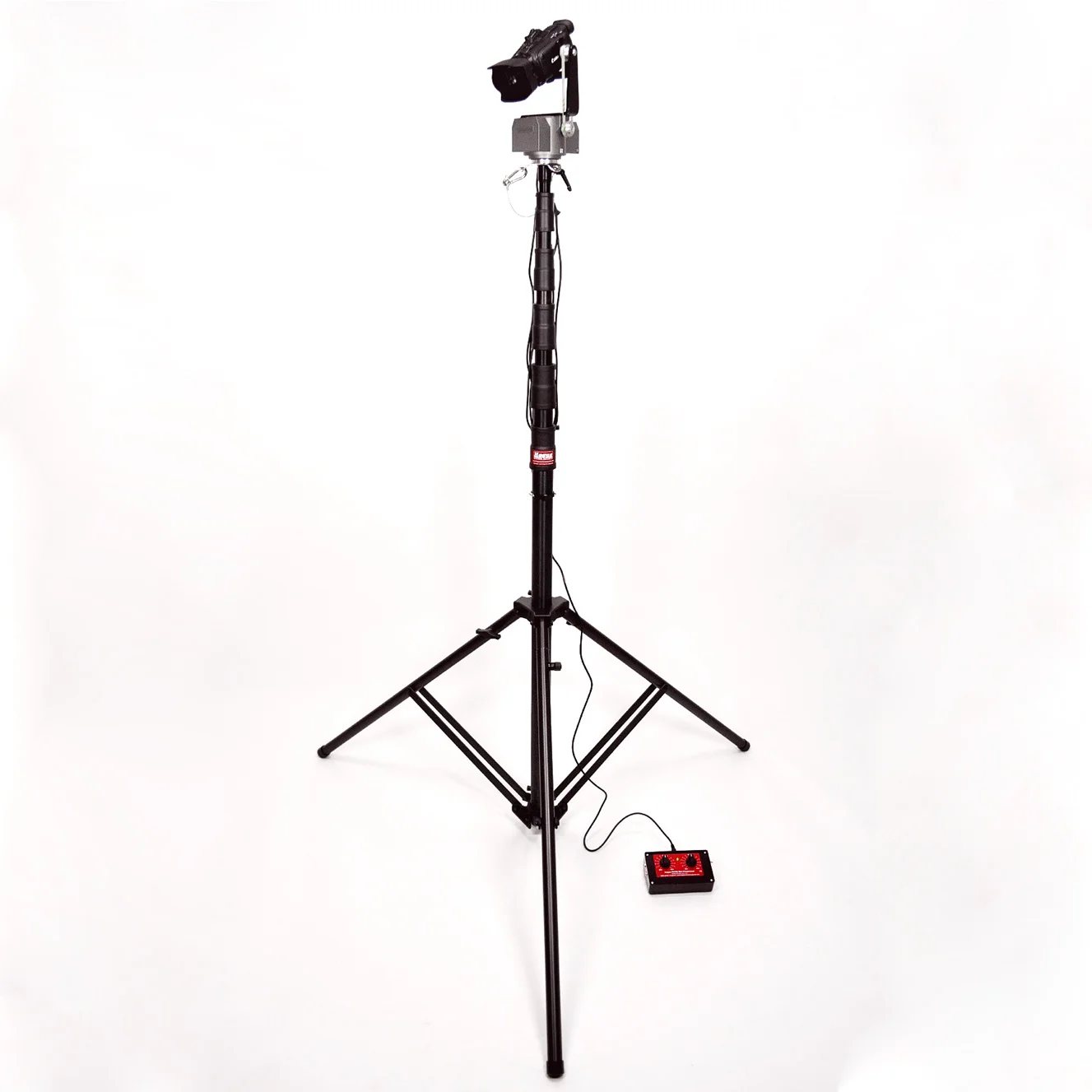

The AMP3 kit includes the Hague AMP Highshot Camera Mast which is supplied in a padded transit bag and the Hague PH100 Powerhead with extension cable and control box.
Please note additional items, such as the iPad, SC4 Superclamp with Articulating Arm, Camera and the UTM Universal Tablet Mount, are not included and are only shown for illustrative purposes.
Product Specifications:
AMP Highshot Camera Mast
Maximum Mast Height – 7.3m (24ft)
Retracted Mast Height – 170cm (5.6ft)
Weight – 10kg
Mast Material – Lightweight Aluminium
PH100 Pan & Tilt Powerhead - Version 2 (November 2019)
Weight – 1kg.
Dimensions – L150 x W125 x H230mm.
Head sockets – 1 x 7 pin control socket.
Head construction – Plastic, Steel and Black powder coated CNC machined aluminium.
Drive - 2 Geared motors with belt driven tilt.
Maximum Camera Weight - 1kg.
Approximate maximum sized camera L180 x W100 x H125mm.
PH100 Control Box - Version 2 (November 2019)
Weight – 679g.
Dimensions – L170 x W143 x H55mm.
Control box sockets – 1 x 7 pin control socket. 1 x 2.1mm Charging socket. 1 x 2.1mm Input socket 12v DC.
Switches – On/off, Pan direction, Tilt direction.
Approximate Speed – Both pan and tilt variable from 0 to 24 degrees per second / 0 to 4 revolutions per minute.
Control Box construction – Grey plastic with Black powder coated aluminium top. Four non slip feet and ¼” threaded mounting hole in the base.
Battery Charger – Model: POW200 PRI:. UK 3 pin 230v AC 50Hz 5.5W SEC: 14V 120mA 1.68VA.
Control Cable – Length 7 metres, colour brown.
Hague Camera Supports | Nottingham | England
