Hague K14 Pro Jib Camera Crane
Hague K14 Pro Jib Camera Crane
Price excludes VAT
The Hague K14 Pro Jib has been designed for use with heavier cameras and will support a maximum weight of 14 kilos.
The telescopic counterbalancing arm uses standard bar weights (not supplied) for counterbalance. All axis points have radial ball bearings giving an effortlessly smooth vertical crane movement of 2 metres.
The Jib is supplied with a 100mm bowl which enables you to use your own video head, a 100mm to 75mm stepper ring is also supplied should you have a 75mm video head. The Pro Jib can be used on any 100/75mm "Bowl type" tripod or a Hague D3/D7 Dolly.
Supports up to 14kg. - Vertical crane movement 2m. - Pan radius 140cm (distance from tripod to camera) - Weight 8kg. - Transit size 150cm x 23cm x 20cm.
Price includes:- Jib Arm with a 100mm bowl & a 100 to 75mm stepper ring, which enables a video head with a 75mm half ball to be used on the jib. Standard bar weights are required for counterbalance. Can be used on a 100 or 75mm "Bowl Type" sturdy tripod. The Jib also fits directly onto the Hague Dollies D3 or D7. Price excludes the tripod, video head, camera, weights and anything else shown for illustration purposes.
Related Products
Price excludes VAT
Soft padded transit bag with carrying straps suitable for the D5 Tripod Tracking Dolly Kit, K14 Pro Jib, K16DV Camcrane.
Colour - Black
Price excludes VAT
The Hague 3 leg clamps help prevent the leg slipping when a Jib/Crane or any other heavy item is mounted to the tripod. The clamps also have a 1/4" threaded mounting hole to attach an articulated arm, on which can be mounted a monitor or other accessory, to the tripod.
The clamp is fastened to the top section of a twin legged tripod and secured just above the tripods leg clamp once the height has been set, this prevents the leg slipping. The bottom section of the tripod is left in its lowest position so that the bottom section cannot move. This then allows the tripod to support more weight without the legs slipping. The tripod must have a mid or floor/ground spreader, or be mounted to a dolly to prevent the legs spreading outwards.
Suitable for Manfrotto Tripod Legs 546 / 545 / 542 / 525 / 520 / 515 / 500. plus other tripods with twin leg top sections that are 90mm apart and are 14-16mm in diameter.
Designed and manufactured by Hague Camera Supports | Nottingham | England
Price excludes VAT

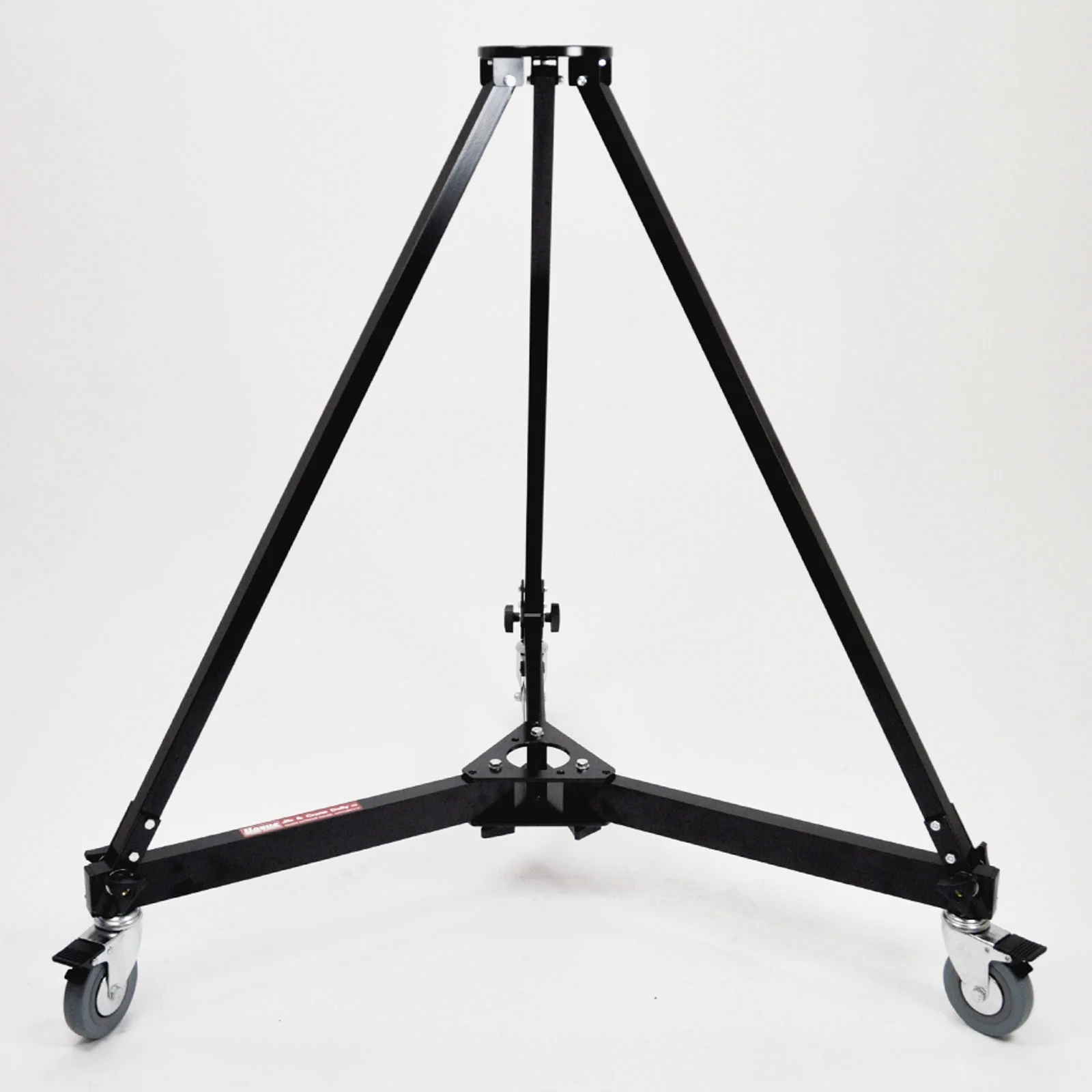

The Hague D3 Jib Dolly is ideal for Hague Jibs & Cranes K12, K14, K16DV, K18. It can also be used with a K9 and K10 but requires the additional BB Hague Bearing Block.
The Hague Dolly D3 has been designed for use with the Hague range of jibs K12, K14 & K16DV. The three leg frame fastens to the dolly with handwheels, making it quick and simple to set up. The large 100mm individually braked swivel wheels enable the dolly to be moved with ease. The aluminium dolly folds down to 62cm x 16cm for easy transportation.
Suitable for Hague Jibs K12,K14,K16DV
Height -110cm.
Weight - 8kg.
Price includes:- Dolly with 100mm dia. Swivel Wheels, Three leg stand.
Designed and manufactured by Hague Camera Supports | Nottingham | England
Price excludes VAT
The Hague PH200 Pro Remote Pan & Tilt Power Head can be mounted to a tripod, jib, crane or wall bracket. It can be mounted vertically or underslung and it supports up to 5kg making it ideal for most professional handheld camcorders and DSLR cameras.
The head will pan and tilt through 360 degrees, this enables the camera to point directly upwards or downwards when required. It is driven by two custom-geared motors with belt drive. The power head's drive pulleys have sealed radial ball bearings for effortless smooth movement with minimum backlash. The motor drive can be easily disengaged to enable the camera to be balanced correctly on the camera plate.
The head's camera plate is adjustable for different sizes of camera and will support up to 5kg. The speed of movement is variable, from the slowest crawl up to 52 degrees per second. The drive motors are quiet at low speeds, but will be heard at higher speeds if the camera's onboard microphone is used. (Similar to most power heads on the market).
Price excludes VAT
The Hague 75mm Bowl can be used to replace the 100mm Bowl used on several of our products. This enables a video head with a 75mm levelling system to be used without the need of a stepper ring.
Suitable for products such as our 100mm Bowl Mounts LH100, CBM, BMS, BM, THM, BM100. Dollies HTD, D2, D7, D8. Jibs K12, K14.
Designed and manufactured by Hague Camera Supports | Nottingham | England
