Hague K18 CamCrane Camera Jib
Hague K18 CamCrane Camera Jib
Price excludes VAT

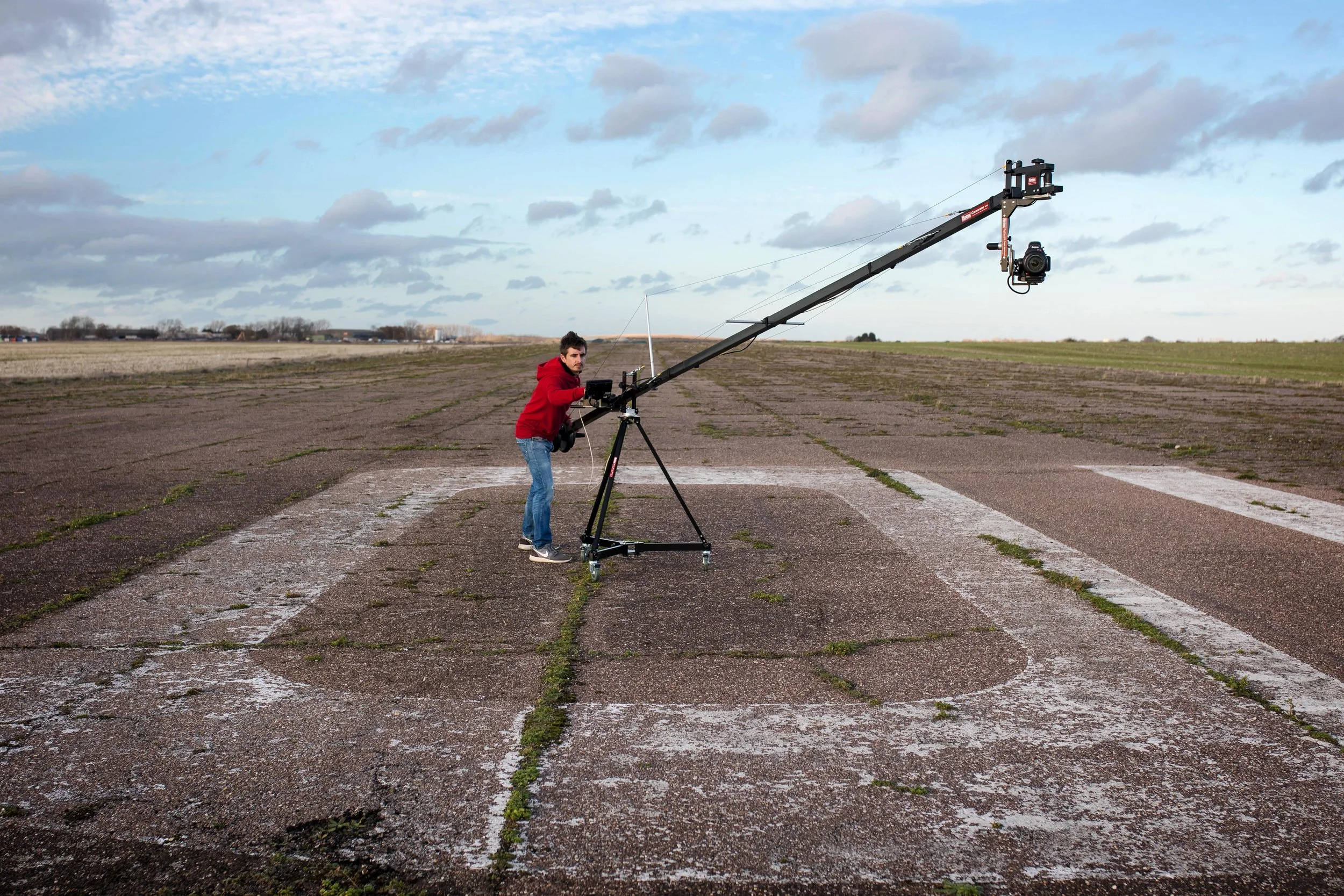

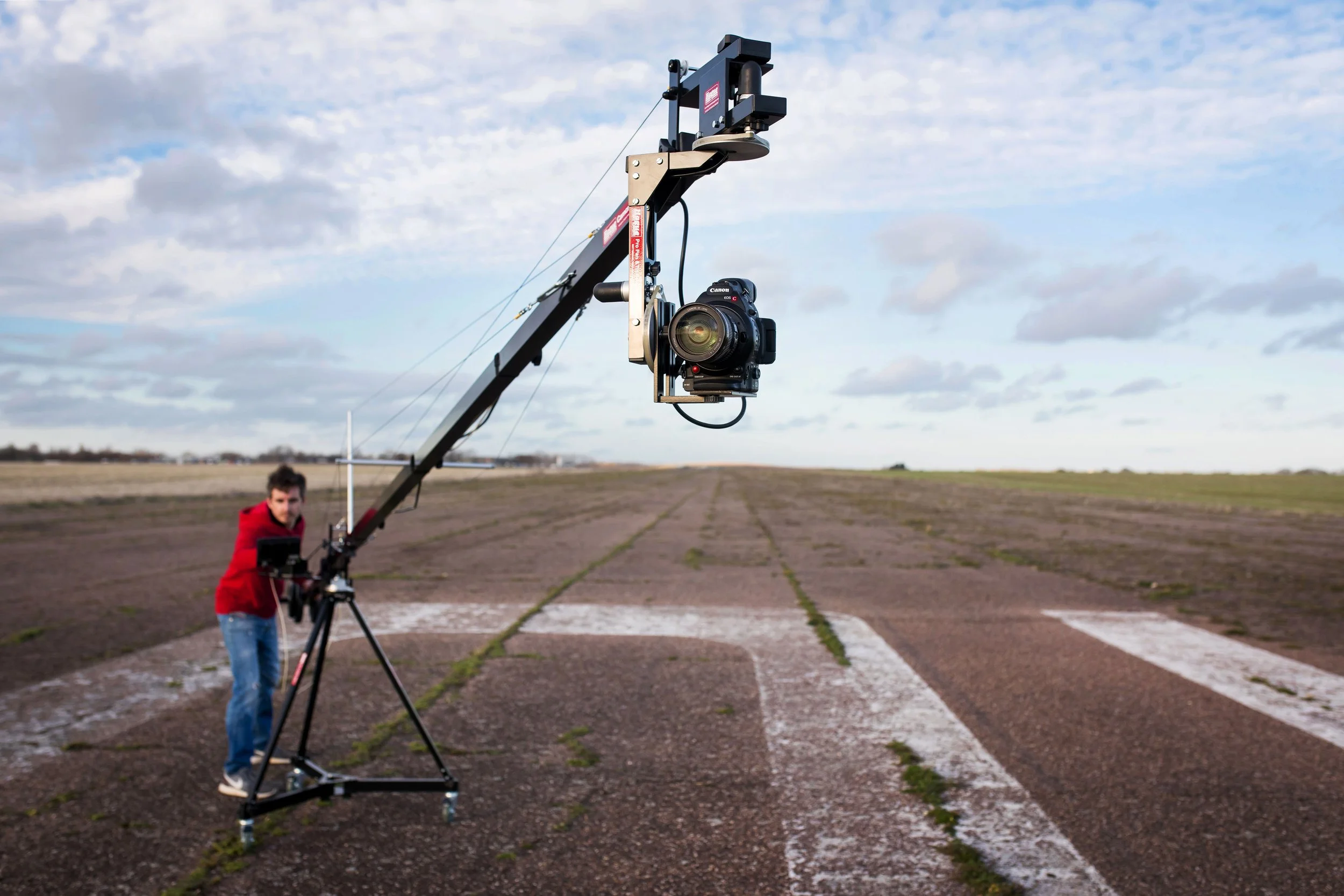

The Hague K18 CamCrane is ideal for people who already have a motorised powerhead or a motorised gimbal that they can use on the end of the crane to mount the camera. This version of the K18 is just the CamCrane and does not have any powerhead or camera mounting option included with it. To mount your camera to the jib you would need to attach your own powerhead or gimbal to the end plate. You cannot attach the camera directly to the jib, you must use a powerhead or a gimbal.
The K18 is quick and simple to set up, it attaches to any sturdy 100 or 75mm "bowl type" tripod or it can be supplied with the Hague D3 Dolly which is listed as a related product. It’s ideal for both handheld camcorders and DSLR cameras mounted to your own powerhead or gimbal.
Once balanced the camera can smoothly move from ground level to almost 7 metres high and the crane will pan 360 degrees. You have the choice of using the CamCrane at its full length or without two of the centre sections. At its full length support cables are used to improve rigidity. The counterbalance arm has an adjustable fine trim weight and a weight bar with handgrips. Standard bar weights are used for counterbalance (not supplied). A monitor bracket (not included, see related products) enables an LCD monitor to be fastened to the crane, making it easier to monitor your shots.
The K18 CamCrane is made of aluminium and breaks down into 5 main sections, making it easier to handle in transit. It is supplied in a cardboard carton but an optional transit case is also available.
K18 CamCrane - Specifications
Length from stand/tripod to camera 427cm at its longest length, or 210cm at its shortest length.
Length from stand/tripod to weight bar 143cm.
Total length: 570cm or 350cm at its shortest length.
Vertical crane movement from ground level to 695cm high (at its longest length) or 226cm (at its shortest length). The maximum vertical crane movement includes going down as well as up, so the crane would need to be on a raised area to achieve the full movement.
Colour – Black.
Transit Size: 120 x 18 x 16 cm.
Weight: 17kg (37.5lbs).
Price includes:- K18 CamCrane.
Price does not include the Powerhead, Camera, Tripod, Dolly, Monitor, Monitor Bracket or any of the other accessories shown for illustration purposes.
RELATED PRODUCTS
Price excludes VAT
The Hague PH200 Pro Remote Pan & Tilt Power Head can be mounted to a tripod, jib, crane or wall bracket. It can be mounted vertically or underslung and it supports up to 5kg making it ideal for most professional handheld camcorders and DSLR cameras.
The head will pan and tilt through 360 degrees, this enables the camera to point directly upwards or downwards when required. It is driven by two custom-geared motors with belt drive. The power head's drive pulleys have sealed radial ball bearings for effortless smooth movement with minimum backlash. The motor drive can be easily disengaged to enable the camera to be balanced correctly on the camera plate.
The head's camera plate is adjustable for different sizes of camera and will support up to 5kg. The speed of movement is variable, from the slowest crawl up to 52 degrees per second. The drive motors are quiet at low speeds, but will be heard at higher speeds if the camera's onboard microphone is used. (Similar to most power heads on the market).
Price excludes VAT
The Hague D3 Jib Dolly is ideal for Hague Jibs & Cranes K12, K14, K16DV, K18. It can also be used with a K9 and K10 but requires the additional BB Hague Bearing Block.
The Hague Dolly D3 has been designed for use with the Hague range of jibs K12, K14 & K16DV. The three leg frame fastens to the dolly with handwheels, making it quick and simple to set up. The large 100mm individually braked swivel wheels enable the dolly to be moved with ease. The aluminium dolly folds down to 62cm x 16cm for easy transportation.
Suitable for Hague Jibs K12,K14,K16DV
Height -110cm.
Weight - 8kg.
Price includes:- Dolly with 100mm dia. Swivel Wheels, Three leg stand.
Designed and manufactured by Hague Camera Supports | Nottingham | England
Price excludes VAT
The Lilliput 339GL HD monitor is a 7 inch 16:9 LCD field monitor optimised for DSLR camera systems. Using a built in battery pack and a high definition IPS screen this model is the natural successor to the popular 668GL monitor featuring the newest available IPS screen panel for crisp native HD picture on a 7" panel.
7” IPS monitor with widescreen
The Lilliput 339 monitor has an ultra high resolution, widescreen IPS type LCD. This crisp display makes it all the easier to review your data
IPS screen gives 720p native resolution
The 339 features an ultra high native resolution of 1280x800 pixels with intelligent scaling applied when receiving higher resolution HDMI signals. This high resolution gives an extremely detailed image potentially avoiding problems in the post-production environment making it an ideal choice for the discerning professional user.
Price excludes VAT
The Hague MB/A monitor bracket is suitable for the following Hague Jibs & Cranes K2/K9/K10/K11/K12/K14/K16DV/K18. For LCD monitors with a single 1/4" fixing hole in the base.
